ICD-ITKE Research Pavilion 2015-16 / ICD-ITKE University of Stuttgart

  • From the architect. The Institute for Computational Design (ICD) and the Institute of Building Structures and Structural Design (ITKE) of the University of Stuttgart have completed a new research pavilion demonstrating robotic textile fabrication techniques for segmented timber shells. The pavilion is the first of its kind to employ industrial sewing of wood elements on an architectural scale. It is part of a successful series of research pavilions which showcase the potential of computational design, simulation and fabrication processes in architecture. The project was designed and realized by students and researchers within a multi-disciplinary team of architects, engineers, biologists, and palaeontologists. more

The overall design responds to site-specific conditions on the university campus. It establishes a semi- exterior space that integrates the ground topography as a seating landscape and opens towards the adjacent public square. At the same time it demonstrates the morphologic adaptability of the developed system by generating more complex spatial arrangements than a simple shell structure. The research pavilion shows how the computational synthesis of biological principles and the complex recipro

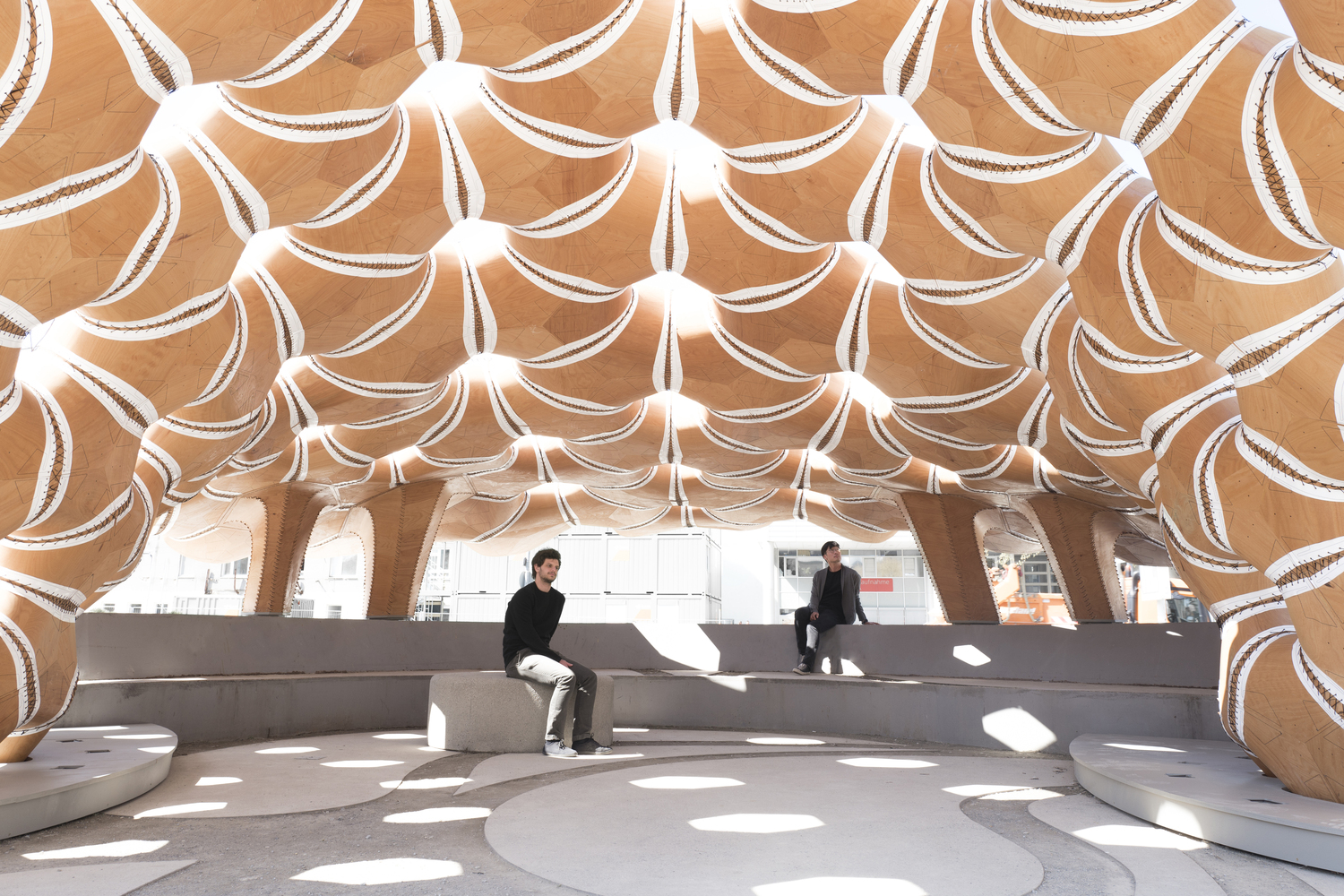

The pavilion consists of 151 segments that were prefabricated by robotic sewing. Each of them is made out of three individually laminated beech plywood strips. Ranging between 0.5 and 1.5 m in diameter, their specific shapes and material make-up are programmed to fit local structural and geometrical requirements. The textile connections developed for this project allow overcoming the need for any metal fasteners. The entire structure weighs 780 Kg while covering an area of 85 m2 and spanning 9.3

Timber exhibits excellent mechanical behaviour and high potentials for textile and multi-material joints outside the scope of conventional timber connections. Especially for thin layers of plywood, multiple continuous connections are generally preferable to larger singular ones. However, glued connections generally require either large presses or complex formwork to maintain the pressure necessary for lamination.

As bending moments in the plywood strips due to external loads should generally be avoided, the joints between segments are designed for transferring in-plane normal and shear forces only. While the latter led to finger joints at the element edges, the former resulted in the distinctive articulation of laced connections that transfer the tensile forces between segments, which play a role similar as the fibrous connections between the sea urchins plates.

Based on both the biological principles as well as the material characteristics, the material system was developed as a double-layered structure similar to the secondary growth in sand dollars. The building elements consist of extremely thin wood strips. Instrumentalising the anisotropy of wood, these strips are custom-laminated so that the grain direction and thickness corresponds with the differentiated stiffness required to form parts with varying radii. Thus, the initially planar strips can

Together with the University of Tübingen, pictures and SEM scans (scanning electron microscopy) were performed on several species in order to understand the intricate internal structures of sea urchins and sand dollars. It was concluded that the performance of these segmented lightweight structures relies not only on the arrangement of its individual calcite plates, but also on the geometric morphology of a double layered system and the differentiation within the material. Most importantly howe

Previous studies on sea urchins by the research partners already led to the transfer of constructional principles and the development of new construction methods for timber plate shells. In this project, natural segmented shell structures were further analysed in an interdisciplinary cooperation between architects and engineers from Stuttgart University and biologists from Tubingen University in order to reveal additional relevant aspects. Within the taxonomic phylum of Echinodermata two species

The development of the ICD/ITKE Research Pavilion 2015-16 is characterised by a twofold bottom-up design strategy based on the biomimetic investigation of natural segmented plate structures and novel robotic fabrication methods for sewing thin layers of plywood. The project commenced with the analysis of the constructional morphology of sand dollars. At the same time, a fabrication technique was developed that enables the production of elastically bent, double-layered segments made from custom-l

From the architect. The Institute for Computational Design (ICD) and the Institute of Building Structures and Structural Design (ITKE) of the University of Stuttgart have completed a new research pavilion demonstrating robotic textile fabrication techniques for segmented timber shells. The pavilion is the first of its kind to employ industrial sewing of wood elements on an architectural scale. It is part of a successful series of research pavilions which showcase the potential of computational d
